My third
crank organ
- a MIDI Busker
I sold the first Busker after building Topsy, but some years later I parted with Topsy as well since my heart condition meant I had problems humping the organ and its cart in and out of my car.

Some further time later, when talking to John Smith about a MIDI version of the original Busker he was making, he persuaded me to make one myself by sending me lots of useful materials - so how could I refuse?



The design for this organ was based on the original
John Smith Busker organ I built previously

You can find out more about John's wonderful work here
(It's a whole new world!)

Below are some pictures of  the construction
Click or tap them to see larger versions
Use your browser's Back button to return to this page

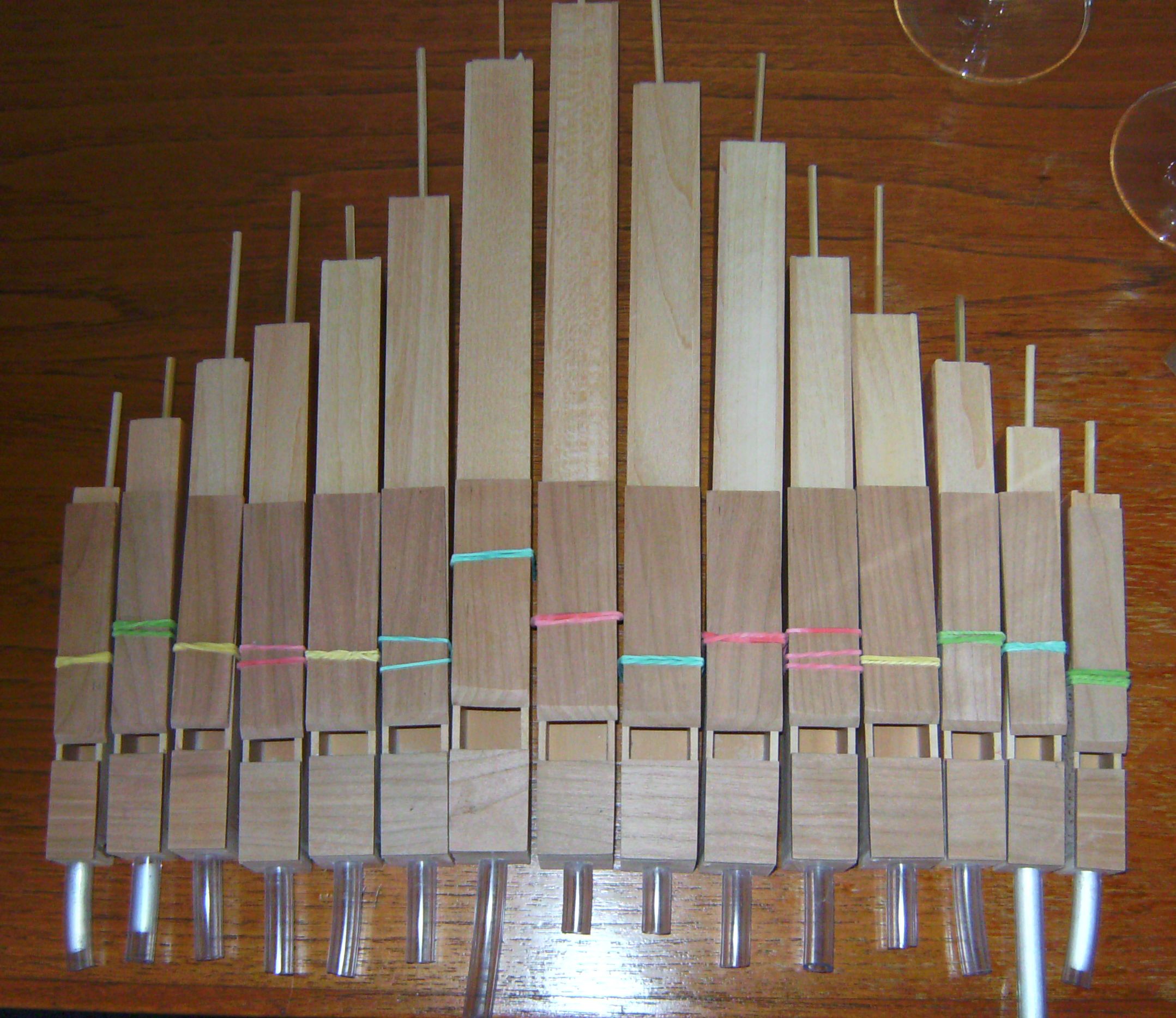

The 15 front pipes of this 20 note organ

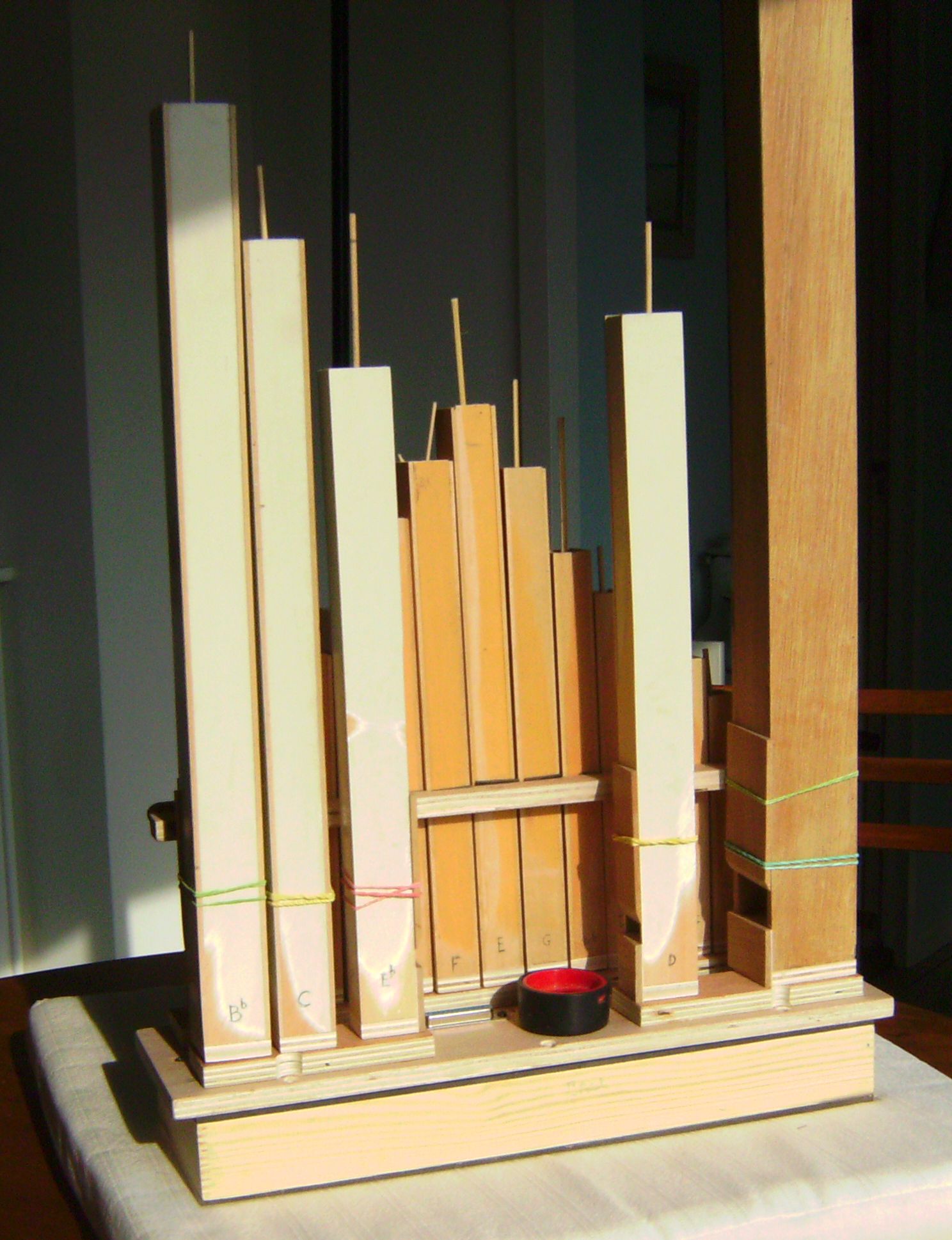

The 5 rear pipes - before they were mitred to fit in the case

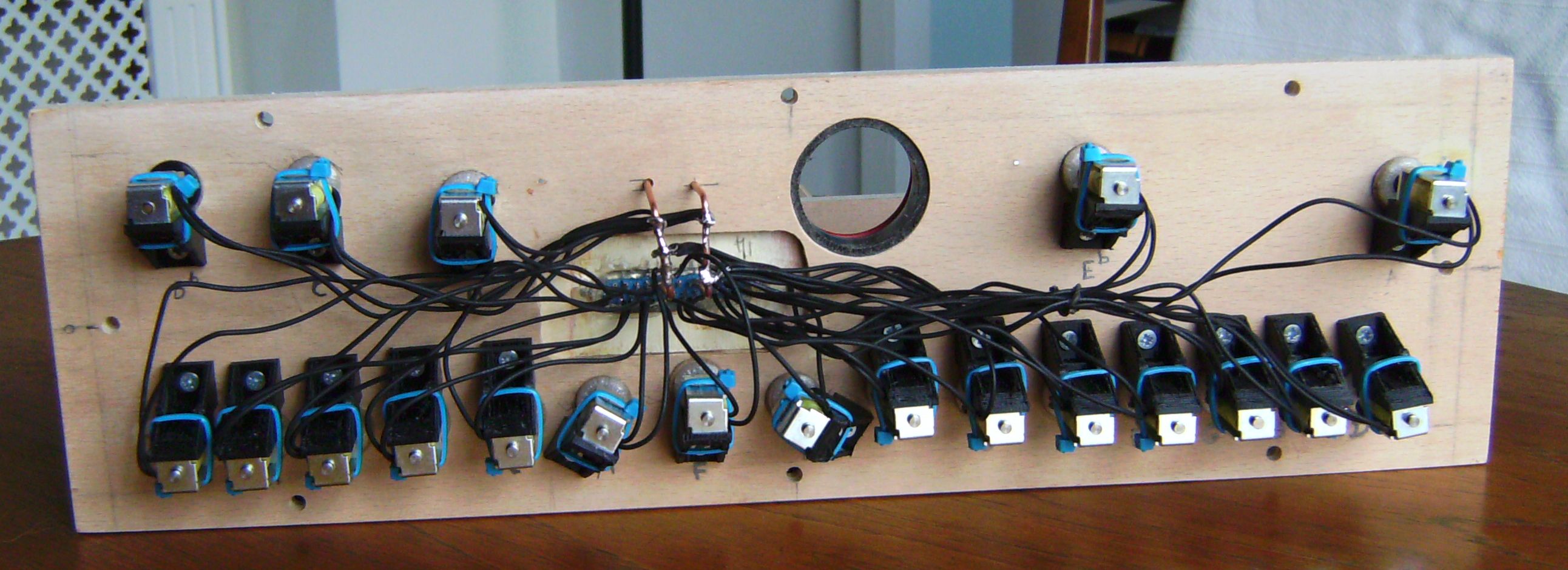

An underside view of the Windchest - showing the wiring of the solenoid valves John supplied

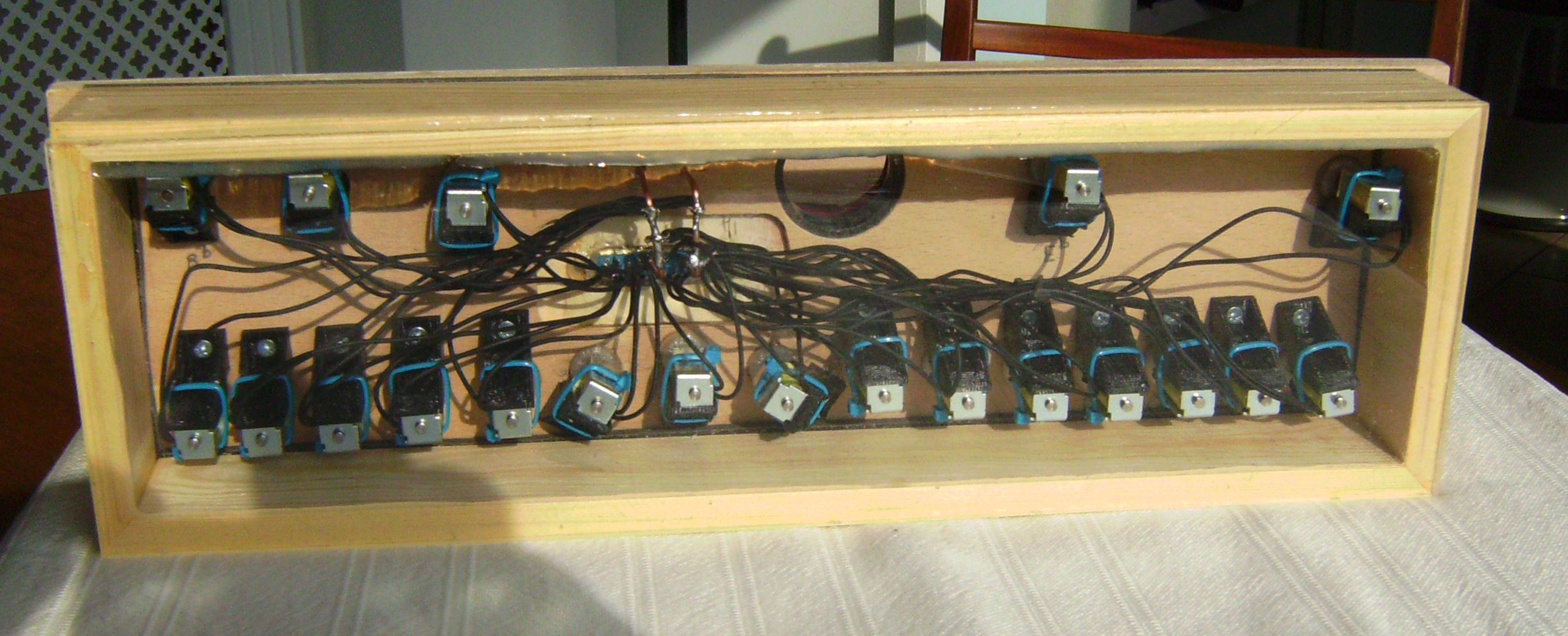

The Windchest with its Perspex cover that enables the solenoids to be seen if the organ is held up in the air!

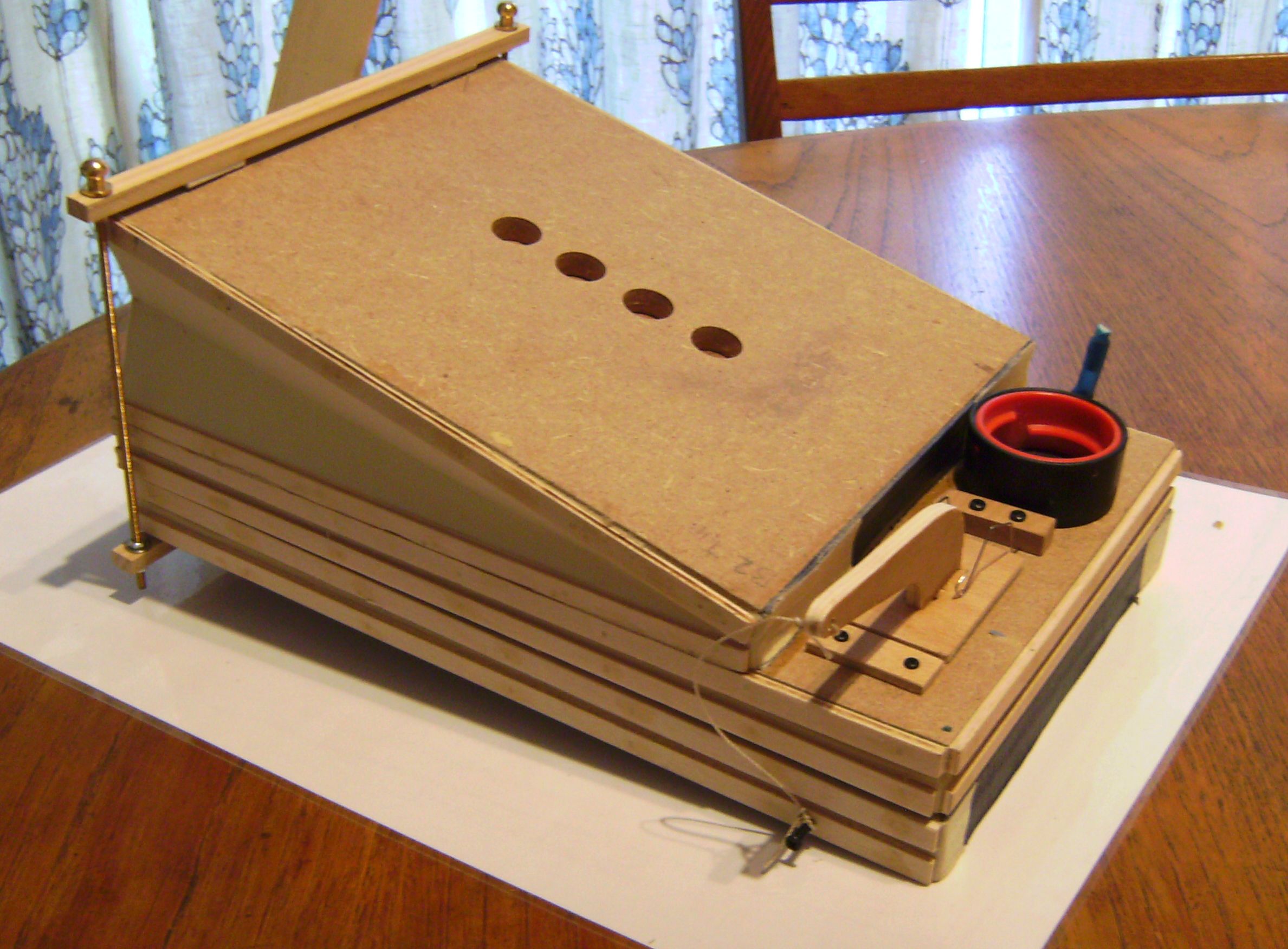

The double-acting bellows - made to Melvyn Wright's design

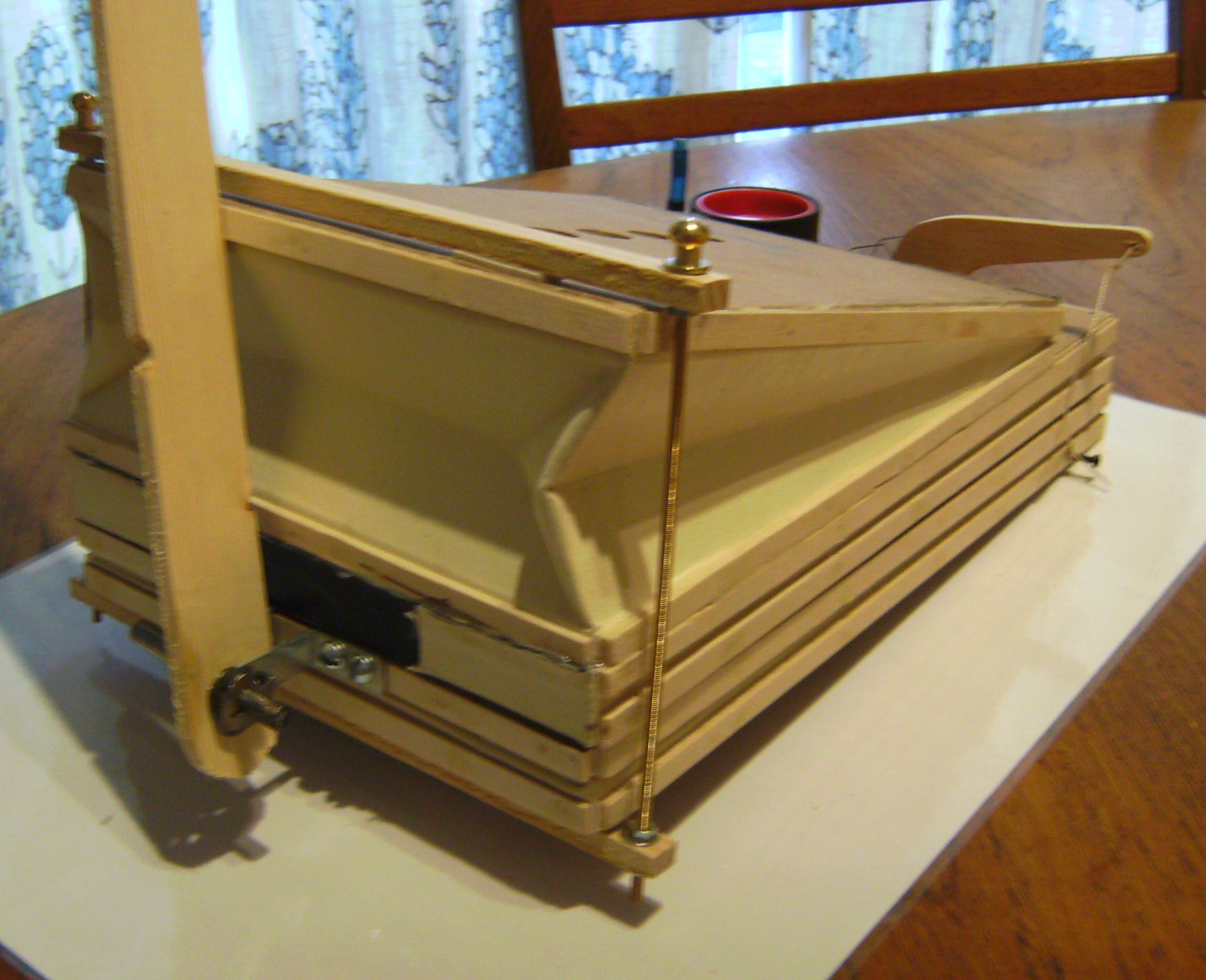

Another view of the bellows, showing the actuating 'con-rod'

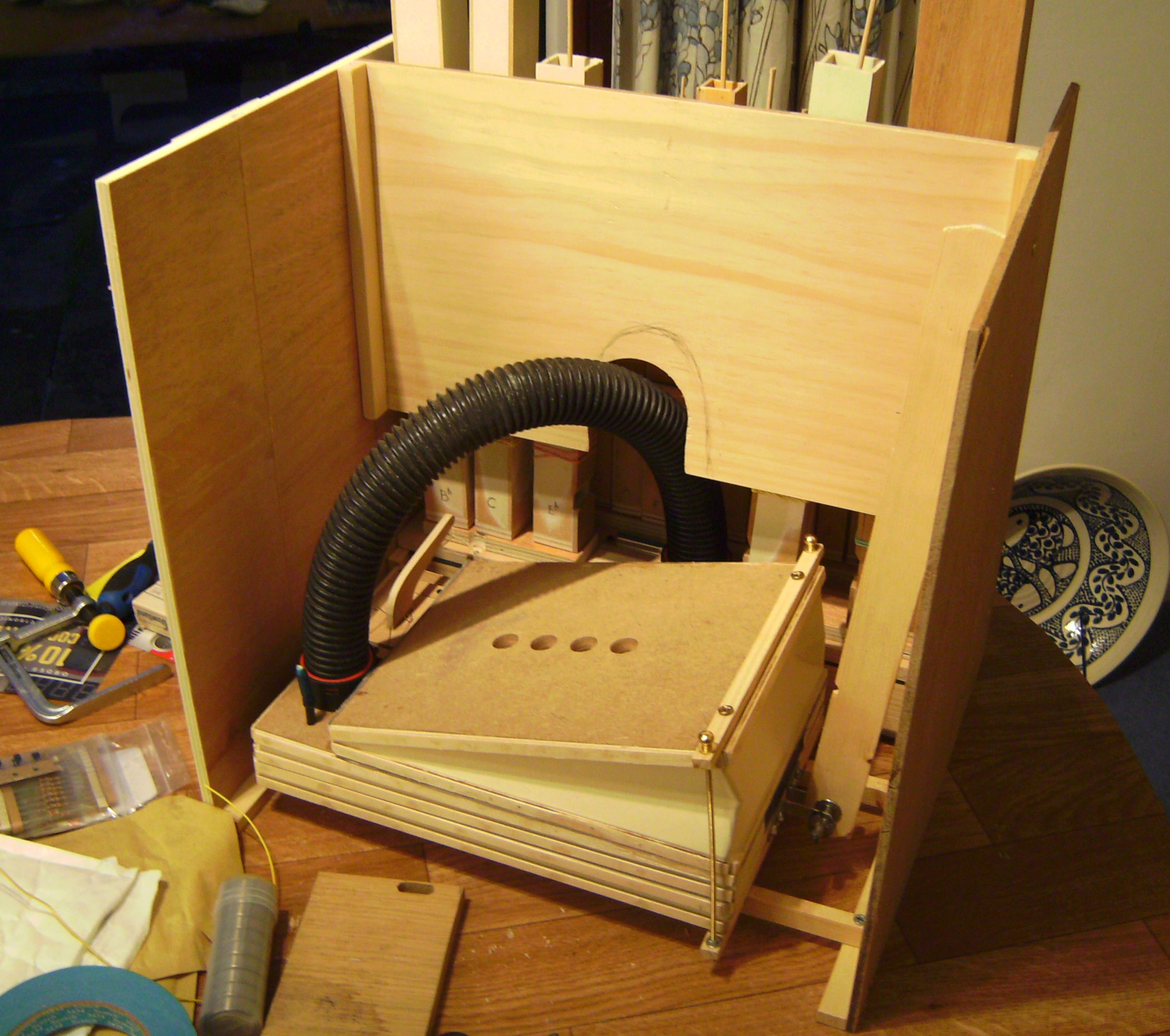

The bellows fitted into the rear of the temporary case - used before finalising the design

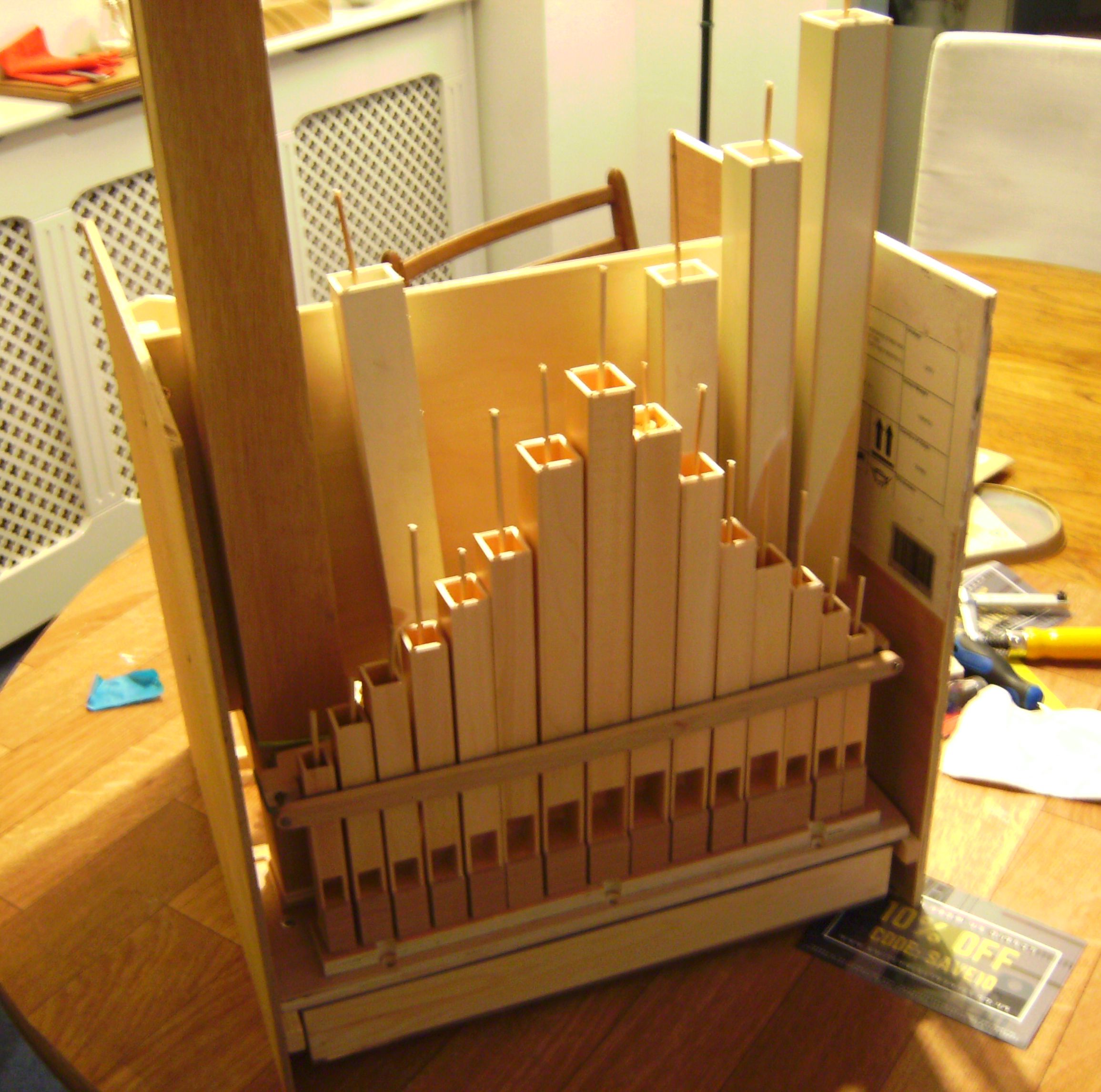

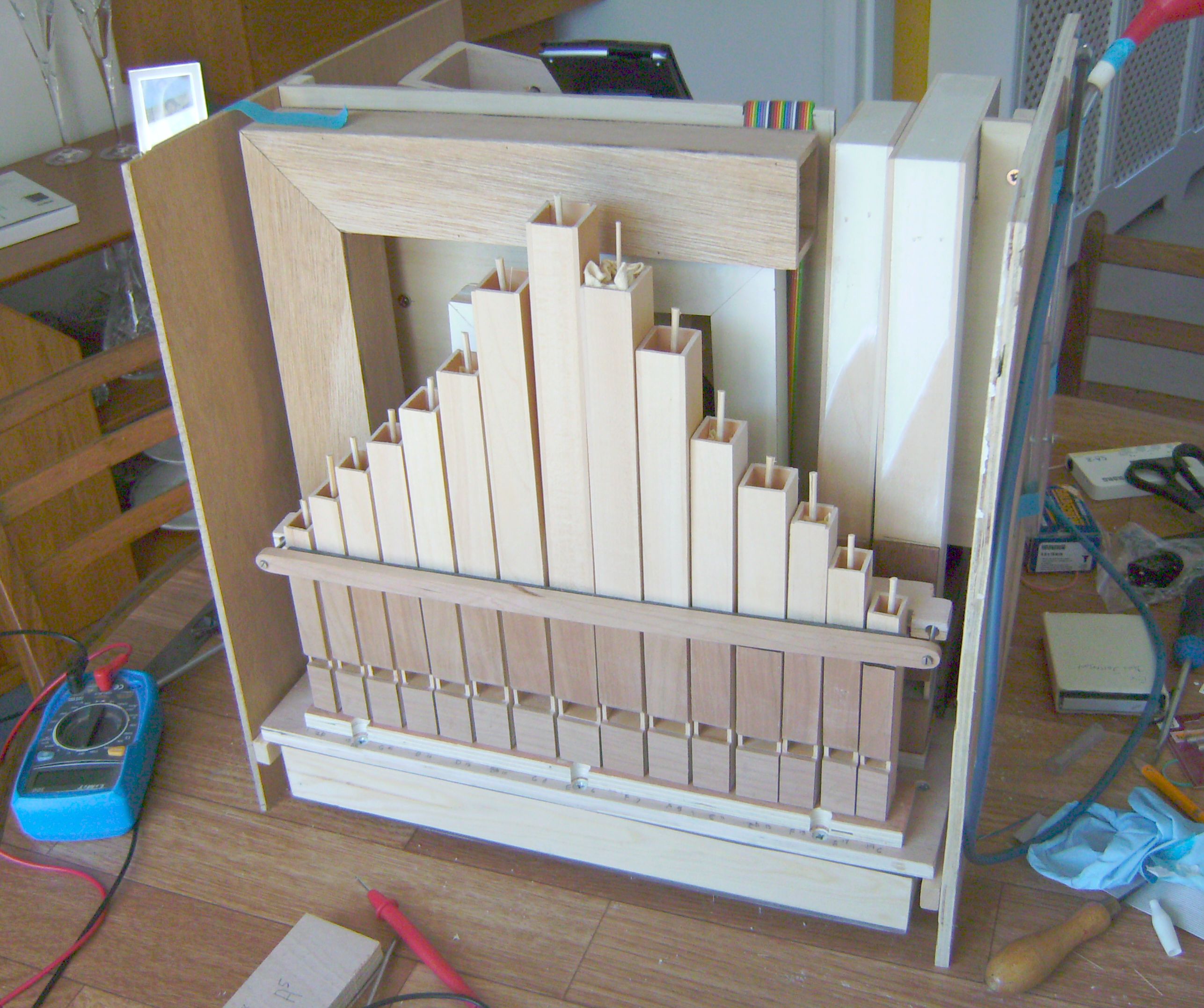

The windchest and pipes fitted in place

Rear pipes mitred to fit in the case

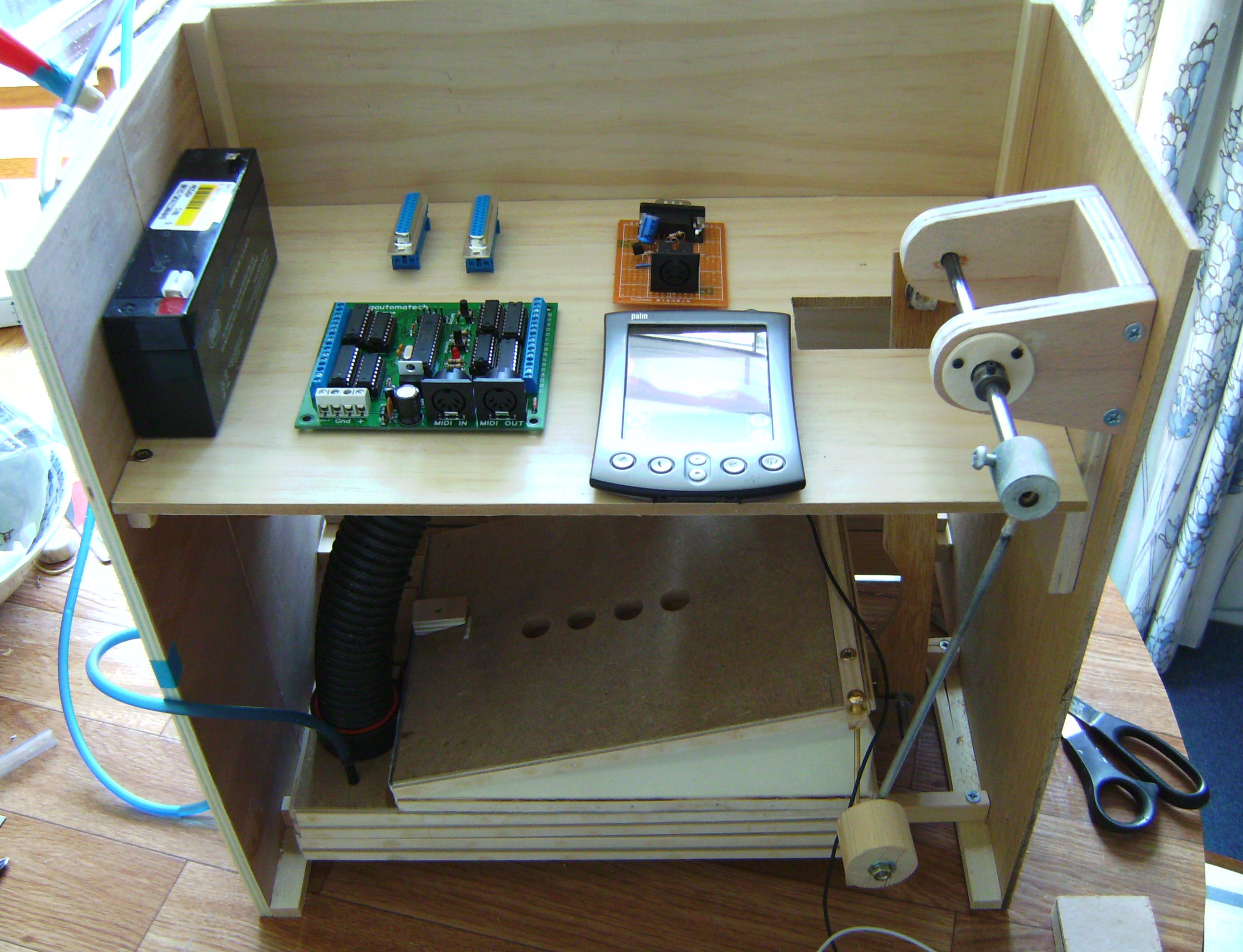

The back of the case, showing the winder for operating the bellows and the 'electronics' shelf with a trial arrangement of components

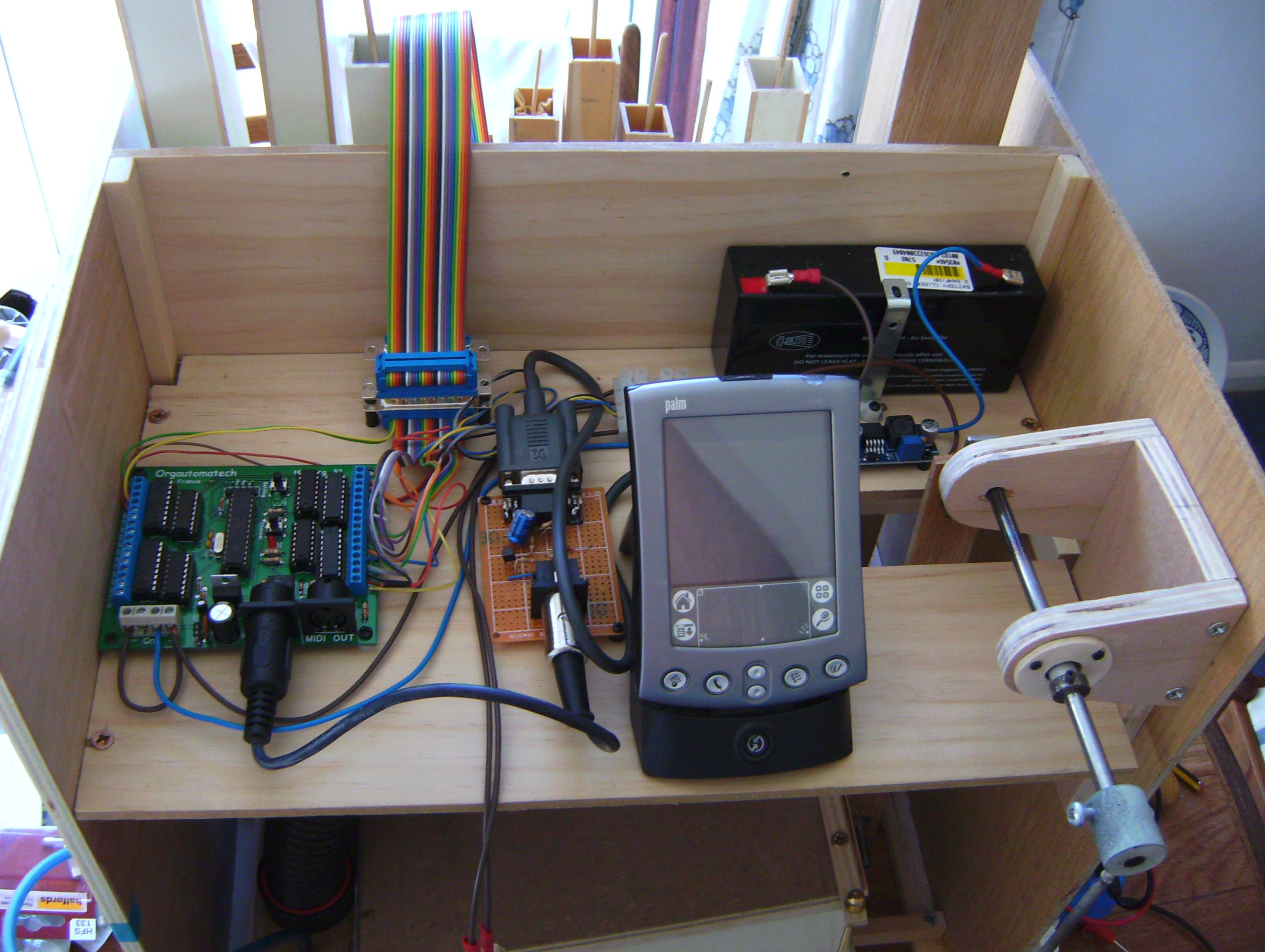

Second arrangement of the components.

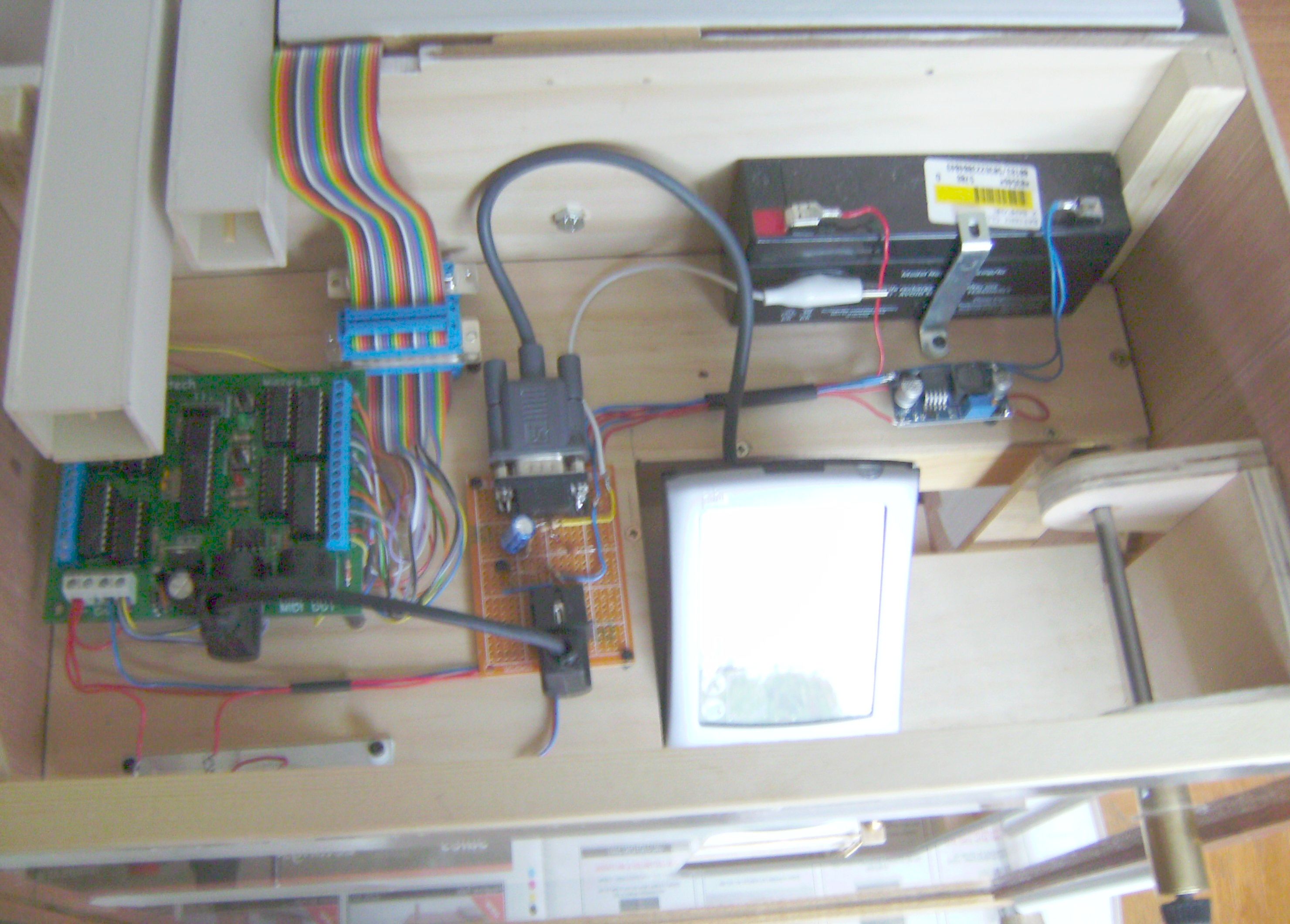

Final arrangement of the components, with the Palm cradle on a dropped down shelf

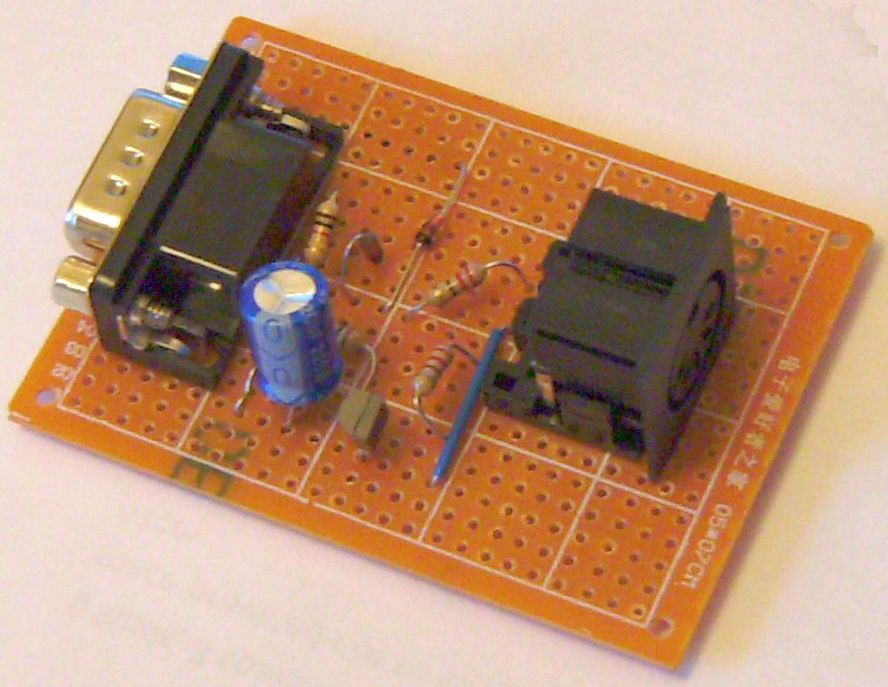

Interface between the Palm cradle and the MIDI Control Board

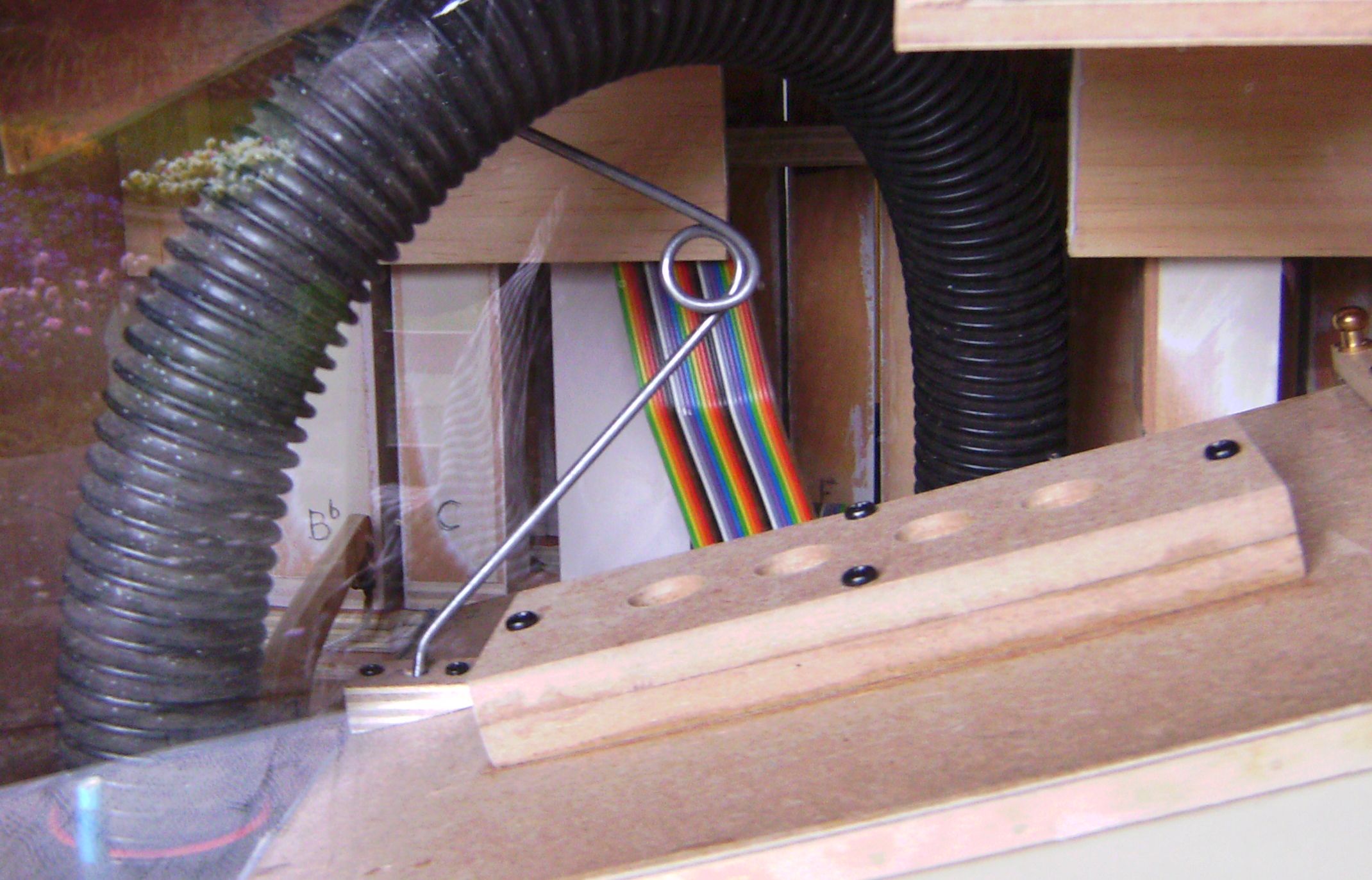

The original pressure spring and the external non-return valve fitted to the top bellows because the internal valve was unreliable

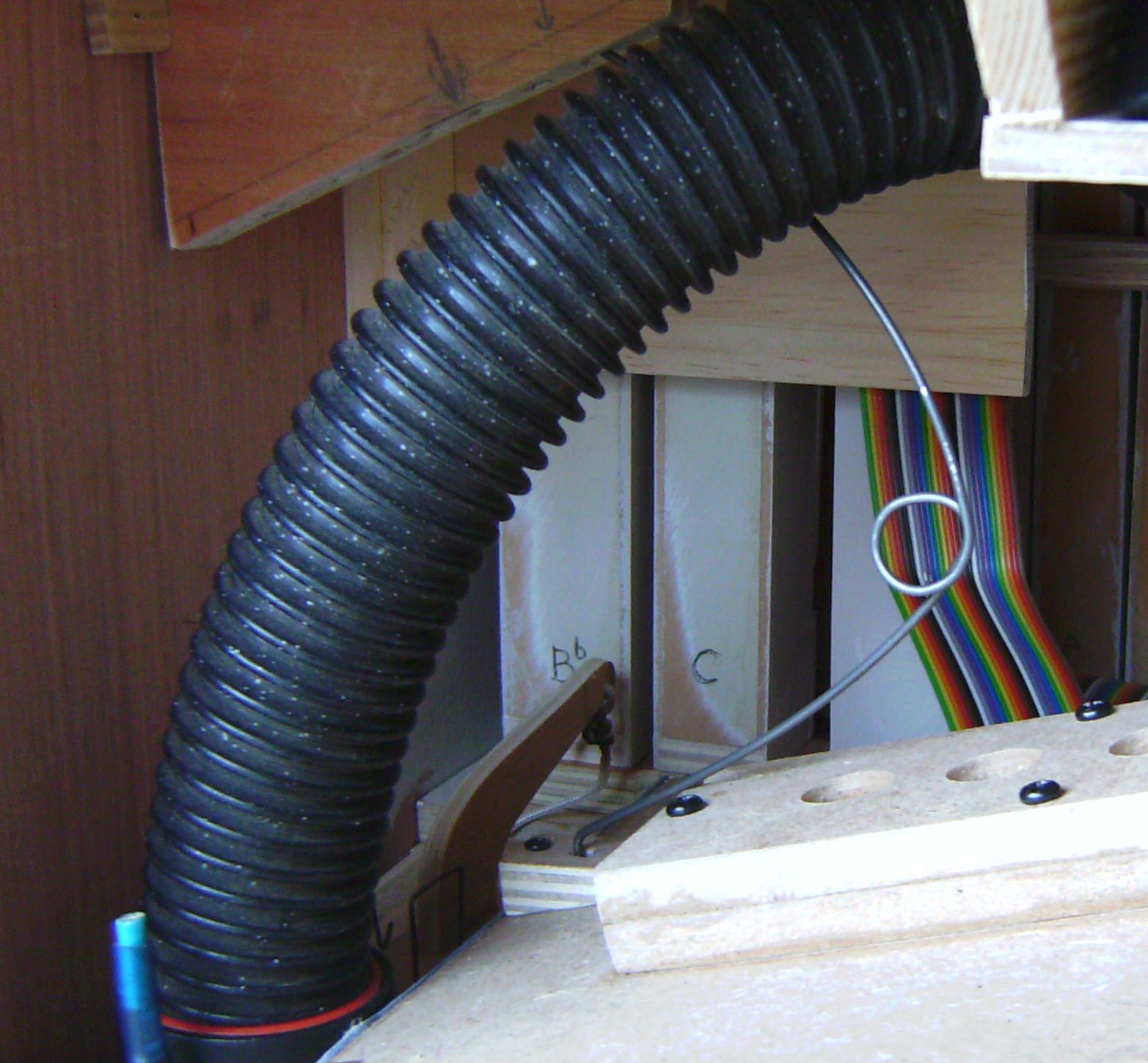

The final - weaker - spring that reduced the operating pressure to a more sensible 3 inches water gauge

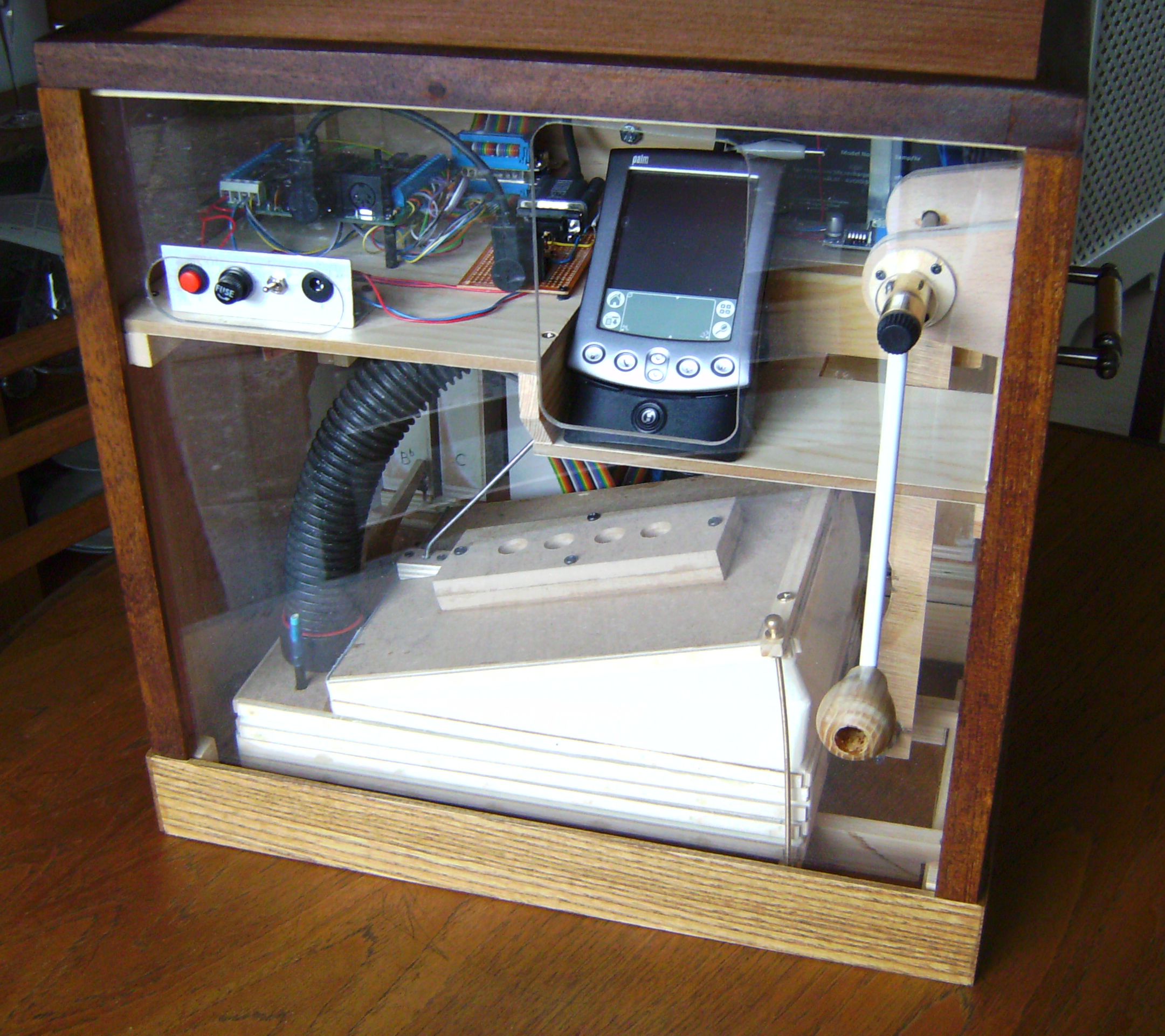

The rear of the final case- also fitted with a Perspex cover so that the internal 'works' can be seen

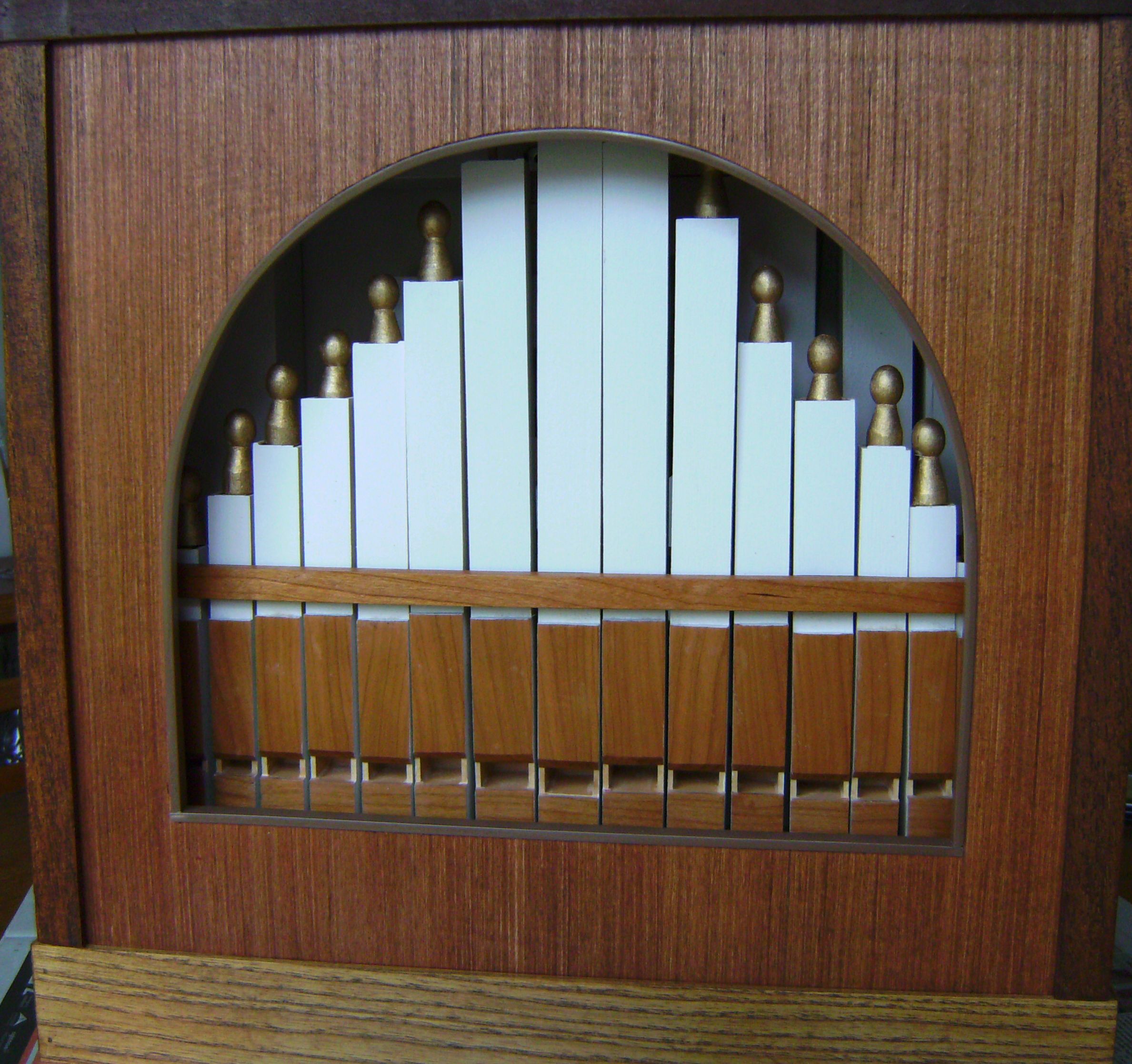

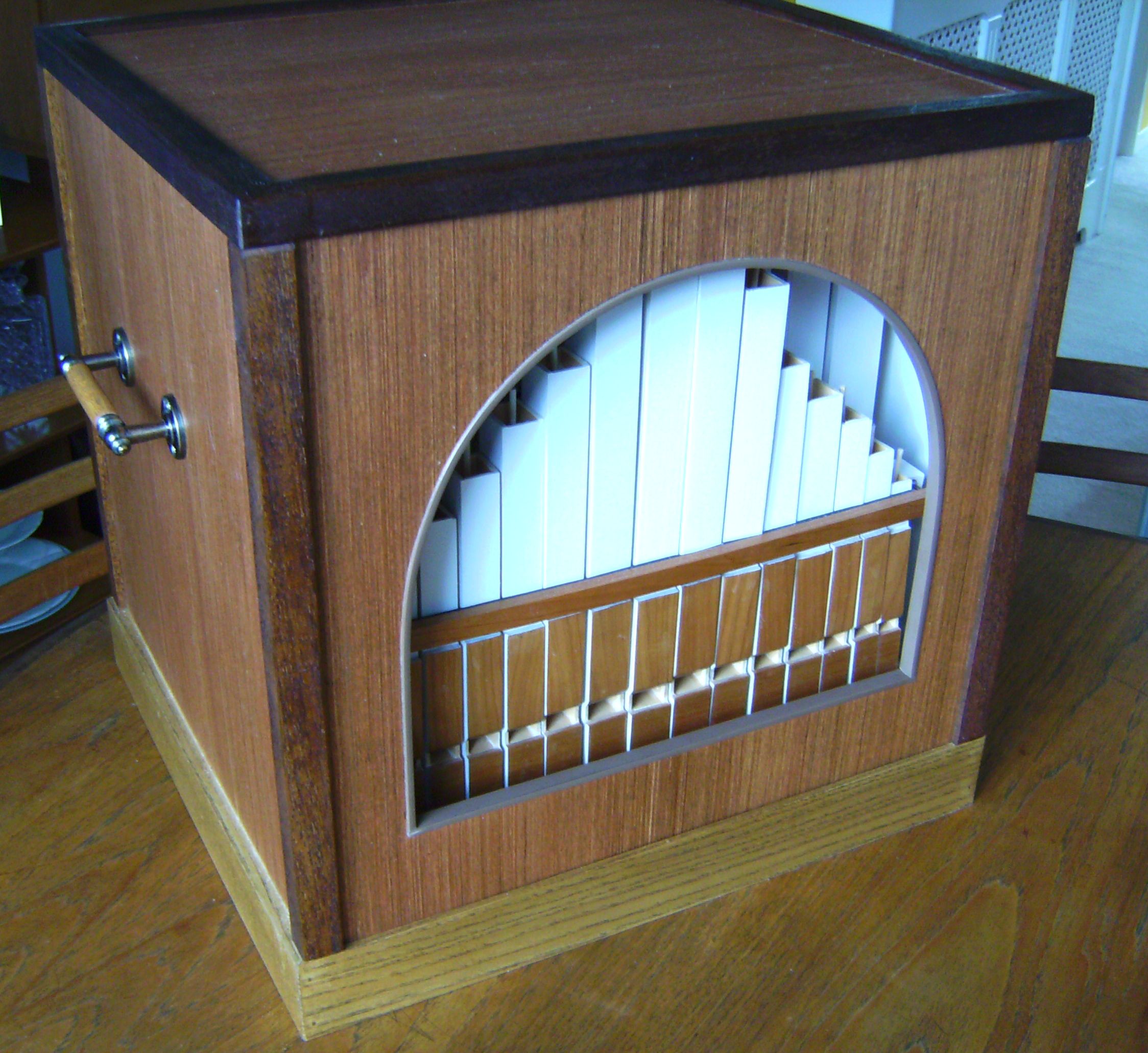

The front of the final case, showing the finials - made from gold-painted tops of old-fashioned 'dolly' clothes pegs - fitted on  pipes whose tops are visible

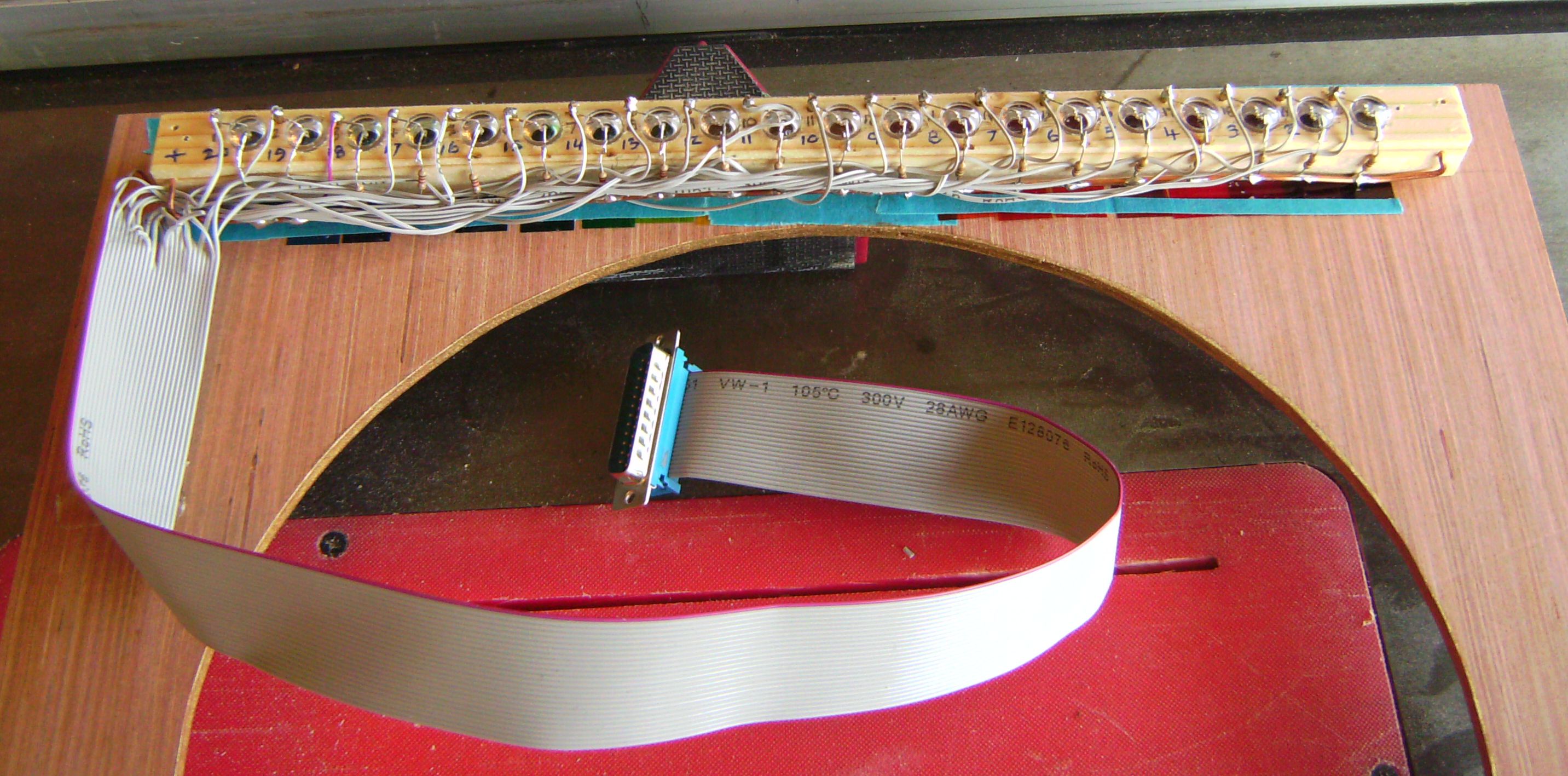

Wiring of the LEDs for the colour display.  This was done twice as the first time I forgot that the wires to the connections on an IDC cable for a 25-way D Type connector do not go to Pins 1, 2, 3 4, 5 etc., but to 1, 14, 2, 15, 3,  etc.
So the long, fiddly job had to be completely redone - the second time I had it plugged in so that I could test each connection as it was made.
